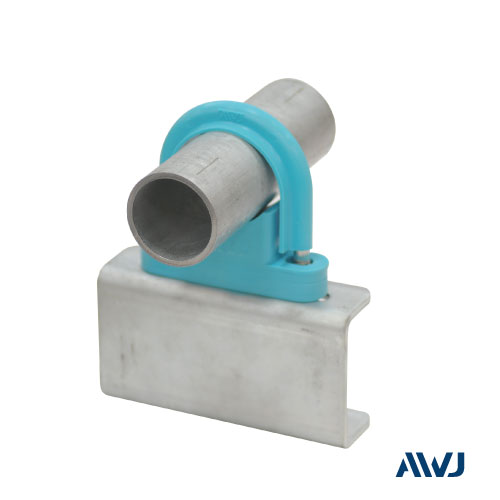

フラットUボルト 足長＋30 ＋50 SGP管［ステンレス厚肉管用］
ユニクロメッキ
・ステンレス鋼管用 15A〜300A
・Stainless steel pipe for general piping 15A〜300A
・異種金属接触腐食防止支持金具
・塩素含有量０%
・使用可能温度：-60℃〜98℃
・カラー：AWJブルー
Uボルト本体 (Metal Part Body)
ユニクロメッキ (Electro-galvanized)
ナット ( Nut)
ユニクロメッキ (Electro-galvanized)
樹脂部分 (Resin Portion)
エラストマー（TPE） (Elastomer)
| Item Number | Size | Item Weight(g) | Color | Quantity in box | MSRP | 2D CAD | 3D CAD | |||
| DXF | x_t | iges | step | |||||||
| SG10349-0153 | SG15A +30 | 1/2 | AWJ Blue | No Settings | ¥860 | DXF | X_T | IGES | STEP | |
| SG10349-0203 | SG20A +30 | 3/4 | AWJ Blue | ¥860 | DXF | X_T | IGES | STEP | ||
| SG10349-0253 | SG25A +30 | 1 | AWJ Blue | ¥860 | DXF | X_T | IGES | STEP | ||
| SG10349-0323 | SG32A +30 | 1 1/4 | AWJ Blue | ¥890 | DXF | X_T | IGES | STEP | ||
| SG10349-0403 | SG40A +30 | 1 1/2 | AWJ Blue | ¥910 | DXF | X_T | IGES | STEP | ||
| SG10349-0503 | SG50A +30 | 2 | AWJ Blue | ¥1,000 | DXF | X_T | IGES | STEP | ||
| SG10349-0653 | SG65A +30 | 2 1/2 | AWJ Blue | ¥1,050 | DXF | X_T | IGES | STEP | ||
| SG10349-0803 | SG80A +30 | 3 | AWJ Blue | ¥1,140 | DXF | X_T | IGES | STEP | ||
| SG10349-1003 | SG100A +30 | 4 | AWJ Blue | ¥2,530 | DXF | X_T | IGES | STEP | ||
| SG10349-1253 | SG125A +30 | 5 | AWJ Blue | ¥2,870 | DXF | X_T | IGES | STEP | ||
| SG10349-1503 | SG150A +30 | 6 | AWJ Blue | ¥4,430 | DXF | X_T | IGES | STEP | ||
| SG10349-2003 | SG200A +30 | 8 | AWJ Blue | ¥3,430 | DXF | X_T | IGES | STEP | ||
| SG10349-2503 | SG250A +30 | 10 | AWJ Blue | ¥4,770 | DXF | X_T | IGES | STEP | ||
| SG10349-3003 | SG300A +30 | 12 | AWJ Blue | ¥5,680 | DXF | X_T | IGES | STEP | ||
| SG10349-0155 | SG15A +50 | 1/2 | AWJ Blue | ￥875 | DXF | X_T | IGES | STEP | ||
| SG10349-0205 | SG20A +50 | 3/4 | AWJ Blue | ¥880 | DXF | X_T | IGES | STEP | ||
| SG10349-0255 | SG25A +50 | 1 | AWJ Blue | ¥880 | DXF | X_T | IGES | STEP | ||
| SG10349-0325 | SG32A +50 | 1 1/4 | AWJ Blue | ¥900 | DXF | X_T | IGES | STEP | ||
| SG10349-0405 | SG40A +50 | 1 1/2 | AWJ Blue | ¥920 | DXF | X_T | IGES | STEP | ||
| SG10349-0505 | SG50A +50 | 2 | AWJ Blue | ¥940 | DXF | X_T | IGES | STEP | ||
| SG10349-0655 | SG65A +50 | 2 1/2 | AWJ Blue | ¥1,010 | DXF | X_T | IGES | STEP | ||
| SG10349-0805 | SG80A +50 | 3 | AWJ Blue | ¥1,070 | DXF | X_T | IGES | STEP | ||
| SG10349-1005 | SG100A +50 | 4 | AWJ Blue | ¥1,150 | DXF | X_T | IGES | STEP | ||
| SG10349-1255 | SG125A +50 | 5 | AWJ Blue | ¥2,640 | DXF | X_T | IGES | STEP | ||
| SG10349-1505 | SG150A +50 | 6 | AWJ Blue | ¥2,980 | DXF | X_T | IGES | STEP | ||
| SG10349-2005 | SG200A +50 | 8 | AWJ Blue | ¥3,550 | DXF | X_T | IGES | STEP | ||
| SG10349-2505 | SG250A +50 | 10 | AWJ Blue | ¥4,880 | DXF | X_T | IGES | STEP | ||
| SG10349-3005 | SG300A +50 | 12 | AWJ Blue | ¥5,790 | DXF | X_T | IGES | STEP | ||
詳しくはPDF図面をご覧ください。
※MSRP＝メーカー希望小売価格
ステンレス
・ステンレス鋼管用 15A〜300A
・Stainless steel pipe for general piping 15A〜300A
・異種金属接触腐食防止支持金具
・塩素含有量０%
・使用可能温度：-60℃〜98℃
・カラー：AWJブルー
Uボルト本体 (Metal Part Body)
SUS304 (Stainless304)
ナット ( Nut)
SUS304 (Stainless304)
樹脂部分 (Resin Portion)
エラストマー（TPE） (Elastomer)
| Item Number | Size | Item Weight(g) | Color | Quantity in box | MSRP | 2D CAD | 3D CAD | |||
| DXF | x_t | iges | step | |||||||
| SG10350-0153 | SG15A +30 | 1/2 | AWJ Blue | No Settings | ¥1,550 | DXF | X_T | IGES | STEP | |
| SG10350-0203 | SG20A +30 | 3/4 | AWJ Blue | ¥1,550 | DXF | X_T | IGES | STEP | ||
| SG10350-0253 | SG25A +30 | 1 | AWJ Blue | ¥1,550 | DXF | X_T | IGES | STEP | ||
| SG10350-0323 | SG32A +30 | 1 1/4 | AWJ Blue | ¥1,840 | DXF | X_T | IGES | STEP | ||
| SG10350-0403 | SG40A +30 | 1 1/2 | AWJ Blue | ¥1,900 | DXF | X_T | IGES | STEP | ||
| SG10350-0503 | SG50A +30 | 2 | AWJ Blue | ¥1,950 | DXF | X_T | IGES | STEP | ||
| SG10350-0653 | SG65A +30 | 2 1/2 | AWJ Blue | ¥2,040 | DXF | X_T | IGES | STEP | ||
| SG10350-0803 | SG80A +30 | 3 | AWJ Blue | ¥2,140 | DXF | X_T | IGES | STEP | ||
| SG10350-1003 | SG100A +30 | 4 | AWJ Blue | ¥2,200 | DXF | X_T | IGES | STEP | ||
| SG10350-1253 | SG125A +30 | 5 | AWJ Blue | ¥4,700 | DXF | X_T | IGES | STEP | ||
| SG10350-1503 | SG150A +30 | 6 | AWJ Blue | ¥5,730 | DXF | X_T | IGES | STEP | ||
| SG10350-2003 | SG200A +30 | 8 | AWJ Blue | ¥6,180 | DXF | X_T | IGES | STEP | ||
| SG10350-2503 | SG250A +30 | 10 | AWJ Blue | ¥14,670 | DXF | X_T | IGES | STEP | ||
| SG10350-3003 | SG300A +30 | 12 | AWJ Blue | ¥21,050 | DXF | X_T | IGES | STEP | ||
| SG10350-0155 | SG15A +50 | 1/2 | AWJ Blue | ￥1,780 | DXF | X_T | IGES | STEP | ||
| SG10350-0205 | SG20A +50 | 3/4 | AWJ Blue | ¥1,780 | DXF | X_T | IGES | STEP | ||
| SG10350-0255 | SG25A +50 | 1 | AWJ Blue | ¥1,780 | DXF | X_T | IGES | STEP | ||
| SG10350-0325 | SG32A +50 | 1 1/4 | AWJ Blue | ¥1,880 | DXF | X_T | IGES | STEP | ||
| SG10350-0405 | SG40A +50 | 1 1/2 | AWJ Blue | ¥1,950 | DXF | X_T | IGES | STEP | ||
| SG10350-0505 | SG50A +50 | 2 | AWJ Blue | ¥1,990 | DXF | X_T | IGES | STEP | ||
| SG10350-0655 | SG65A +50 | 2 1/2 | AWJ Blue | ¥2,080 | DXF | X_T | IGES | STEP | ||
| SG10350-0805 | SG80A +50 | 3 | AWJ Blue | ¥2,160 | DXF | X_T | IGES | STEP | ||
| SG10350-1005 | SG100A +50 | 4 | AWJ Blue | ¥2,290 | DXF | X_T | IGES | STEP | ||
| SG10350-1255 | SG125A +50 | 5 | AWJ Blue | ¥4,840 | DXF | X_T | IGES | STEP | ||
| SG10350-1505 | SG150A +50 | 6 | AWJ Blue | ¥6,000 | DXF | X_T | IGES | STEP | ||
| SG10350-2005 | SG200A +50 | 8 | AWJ Blue | ¥6,380 | DXF | X_T | IGES | STEP | ||
| SG10350-2505 | SG250A +50 | 10 | AWJ Blue | ¥15,950 | DXF | X_T | IGES | STEP | ||
| SG10350-3005 | SG300A +50 | 12 | AWJ Blue | ¥21,680 | DXF | X_T | IGES | STEP | ||
詳しくはPDF図面をご覧ください。
※MSRP＝メーカー希望小売価格

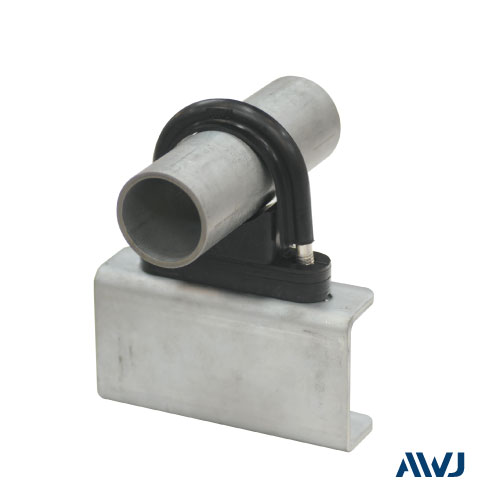

溶融亜鉛メッキ[屋外用]
・ステンレス薄肉管専用 15A〜300A
・Stainless steel pipe for general piping 15A〜300A
・異種金属接触腐食防止支持金具
・塩素含有量０%
・使用可能温度：-60℃〜98℃
・カラー：ブラック
Uボルト本体 (Metal Part Body)
溶融亜鉛メッキ (Hot-dip galvanized )
ナット ( Nut)
溶融亜鉛メッキ (Hot-dip galvanized )
樹脂部分 (Resin Portion)
エラストマー（TPE） (Elastomer)
| Item Number | Size | Item Weight(g) | Color | Quantity in box | MSRP | 2D CAD | 3D CAD | |||
| DXF | x_t | iges | step | |||||||
| SG10359-0153 | SG15A +30 | 1/2 | Black | No Settings | ¥1,840 | DXF | X_T | IGES | STEP | |
| SG10359-0203 | SG20A +30 | 3/4 | Black | ¥1,840 | DXF | X_T | IGES | STEP | ||
| SG10359-0253 | SG25A +30 | 1 | Black | ¥1,840 | DXF | X_T | IGES | STEP | ||
| SG10359-0323 | SG32A +30 | 1 1/4 | Black | ¥1,910 | DXF | X_T | IGES | STEP | ||
| SG10359-0403 | SG40A +30 | 1 1/2 | Black | ¥1,980 | DXF | X_T | IGES | STEP | ||
| SG10359-0503 | SG50A +30 | 2 | Black | ¥2,040 | DXF | X_T | IGES | STEP | ||
| SG10359-0653 | SG65A +30 | 2 1/2 | Black | ¥2,100 | DXF | X_T | IGES | STEP | ||
| SG10359-0803 | SG80A +30 | 3 | Black | ¥2,240 | DXF | X_T | IGES | STEP | ||
| SG10359-1003 | SG100A +30 | 4 | Black | ¥2,370 | DXF | X_T | IGES | STEP | ||
| SG10359-1253 | SG125A +30 | 5 | Black | ¥4,830 | DXF | X_T | IGES | STEP | ||
| SG10359-1503 | SG150A +30 | 6 | Black | ¥5,860 | DXF | X_T | IGES | STEP | ||
| SG10359-2003 | SG200A +30 | 8 | Black | ¥6,320 | DXF | X_T | IGES | STEP | ||
| SG10359-2503 | SG250A +30 | 10 | Black | ¥15,050 | DXF | X_T | IGES | STEP | ||
| SG10359-3003 | SG300A +30 | 12 | Black | ¥22,320 | DXF | X_T | IGES | STEP | ||
| SG10359-0155 | SG15A +50 | 1/2 | Black | ￥1,910 | DXF | X_T | IGES | STEP | ||
| SG10359-0205 | SG20A +50 | 3/4 | Black | ¥1,910 | DXF | X_T | IGES | STEP | ||
| SG10359-0255 | SG25A +50 | 1 | Black | ¥1,910 | DXF | X_T | IGES | STEP | ||
| SG10359-0325 | SG32A +50 | 1 1/4 | Black | ¥1,980 | DXF | X_T | IGES | STEP | ||
| SG10359-0405 | SG40A +50 | 1 1/2 | Black | ¥2,040 | DXF | X_T | IGES | STEP | ||
| SG10359-0505 | SG50A +50 | 2 | Black | ¥2,100 | DXF | X_T | IGES | STEP | ||
| SG10359-0655 | SG65A +50 | 2 1/2 | Black | ¥2,170 | DXF | X_T | IGES | STEP | ||
| SG10359-0805 | SG80A +50 | 3 | Black | ¥2,300 | DXF | X_T | IGES | STEP | ||
| SG10359-1005 | SG100A +50 | 4 | Black | ¥2,440 | DXF | X_T | IGES | STEP | ||
| SG10359-1255 | SG125A +50 | 5 | Black | ¥4,970 | DXF | X_T | IGES | STEP | ||
| SG10359-1505 | SG150A +50 | 6 | Black | ¥6,120 | DXF | X_T | IGES | STEP | ||
| SG10359-2005 | SG200A +50 | 8 | Black | ¥6,510 | DXF | X_T | IGES | STEP | ||
| SG10359-2505 | SG250A +50 | 10 | Black | ¥16,320 | DXF | X_T | IGES | STEP | ||
| SG10359-3005 | SG300A +50 | 12 | Black | ¥22,950 | DXF | X_T | IGES | STEP | ||
詳しくはPDF図面をご覧ください。
※MSRP＝メーカー希望小売価格
ステンレス[屋外用]
・ステンレス鋼管用 15A〜300A
・Stainless steel pipe for general piping 15A〜300A
・異種金属接触腐食防止支持金具
・塩素含有量０%
・使用可能温度：-60℃〜98℃
・カラー：ブラック
Uボルト本体 (Metal Part Body)
SUS304 (Stainless304)
ナット ( Nut)
SUS304 (Stainless304)
樹脂部分 (Resin Portion)
エラストマー（TPE） (Elastomer)
| Item Number | Size | Item Weight(g) | Color | Quantity in box | MSRP | 2D CAD | 3D CAD | |||
| DXF | x_t | iges | step | |||||||
| SG10354-0153 | SG15A +30 | 1/2 | Black | No Settings | ¥1,840 | DXF | X_T | IGES | STEP | |
| SG10354-0203 | SG20A +30 | 3/4 | Black | ¥1,840 | DXF | X_T | IGES | STEP | ||
| SG10354-0253 | SG25A +30 | 1 | Black | ¥1,840 | DXF | X_T | IGES | STEP | ||
| SG10354-0323 | SG32A +30 | 1 1/4 | Black | ¥1,910 | DXF | X_T | IGES | STEP | ||
| SG10354-0403 | SG40A +30 | 1 1/2 | Black | ¥1,980 | DXF | X_T | IGES | STEP | ||
| SG10354-0503 | SG50A +30 | 2 | Black | ¥2,040 | DXF | X_T | IGES | STEP | ||
| SG10354-0653 | SG65A +30 | 2 1/2 | Black | ¥2,100 | DXF | X_T | IGES | STEP | ||
| SG10354-0803 | SG80A +30 | 3 | Black | ¥2,240 | DXF | X_T | IGES | STEP | ||
| SG10354-1003 | SG100A +30 | 4 | Black | ¥2,370 | DXF | X_T | IGES | STEP | ||
| SG10354-1253 | SG125A +30 | 5 | Black | ¥4,830 | DXF | X_T | IGES | STEP | ||
| SG10354-1503 | SG150A +30 | 6 | Black | ¥5,860 | DXF | X_T | IGES | STEP | ||
| SG10354-2003 | SG200A +30 | 8 | Black | ¥6,320 | DXF | X_T | IGES | STEP | ||
| SG10354-2503 | SG250A +30 | 10 | Black | ¥15,050 | DXF | X_T | IGES | STEP | ||
| SG10354-3003 | SG300A +30 | 12 | Black | ¥22,320 | DXF | X_T | IGES | STEP | ||
| SG10354-0155 | SG15A +50 | 1/2 | Black | ￥1,910 | DXF | X_T | IGES | STEP | ||
| SG10354-0205 | SG20A +50 | 3/4 | Black | ¥1,910 | DXF | X_T | IGES | STEP | ||
| SG10354-0255 | SG25A +50 | 1 | Black | ¥1,910 | DXF | X_T | IGES | STEP | ||
| SG10354-0325 | SG32A +50 | 1 1/4 | Black | ¥1,980 | DXF | X_T | IGES | STEP | ||
| SG10354-0405 | SG40A +50 | 1 1/2 | Black | ¥2,040 | DXF | X_T | IGES | STEP | ||
| SG10354-0505 | SG50A +50 | 2 | Black | ¥2,100 | DXF | X_T | IGES | STEP | ||
| SG10354-0655 | SG65A +50 | 2 1/2 | Black | ¥2,170 | DXF | X_T | IGES | STEP | ||
| SG10354-0805 | SG80A +50 | 3 | Black | ¥2,300 | DXF | X_T | IGES | STEP | ||
| SG10354-1005 | SG100A +50 | 4 | Black | ¥2,440 | DXF | X_T | IGES | STEP | ||
| SG10354-1255 | SG125A +50 | 5 | Black | ¥4,970 | DXF | X_T | IGES | STEP | ||
| SG10354-1505 | SG150A +50 | 6 | Black | ¥6,120 | DXF | X_T | IGES | STEP | ||
| SG10354-2005 | SG200A +50 | 8 | Black | ¥6,510 | DXF | X_T | IGES | STEP | ||
| SG10354-2505 | SG250A +50 | 10 | Black | ¥16,320 | DXF | X_T | IGES | STEP | ||
| SG10354-3005 | SG300A +50 | 12 | Black | ¥22,950 | DXF | X_T | IGES | STEP | ||
