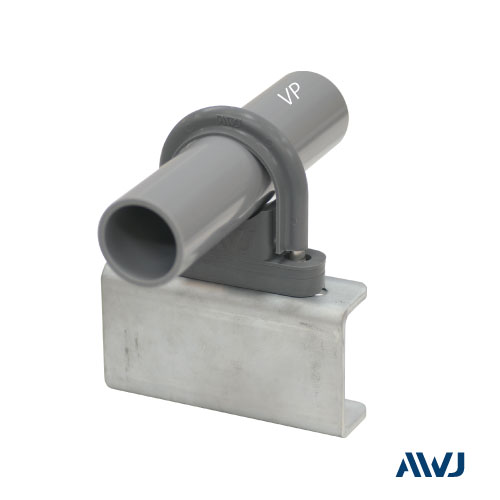

フラットUボルト 足長＋30 ＋50 VP管［硬質ポリ塩化ビニル管用］

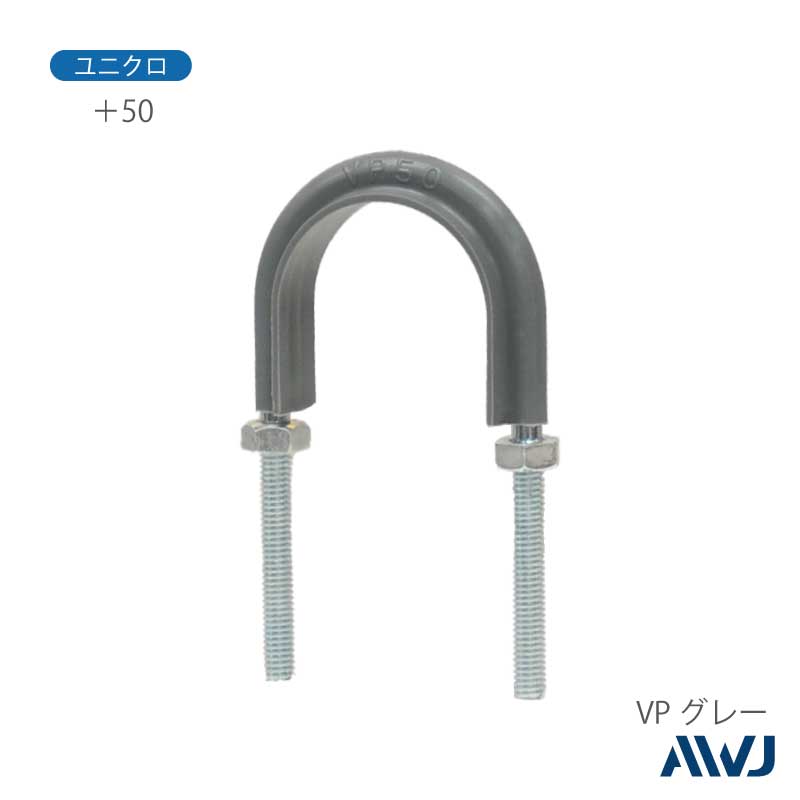

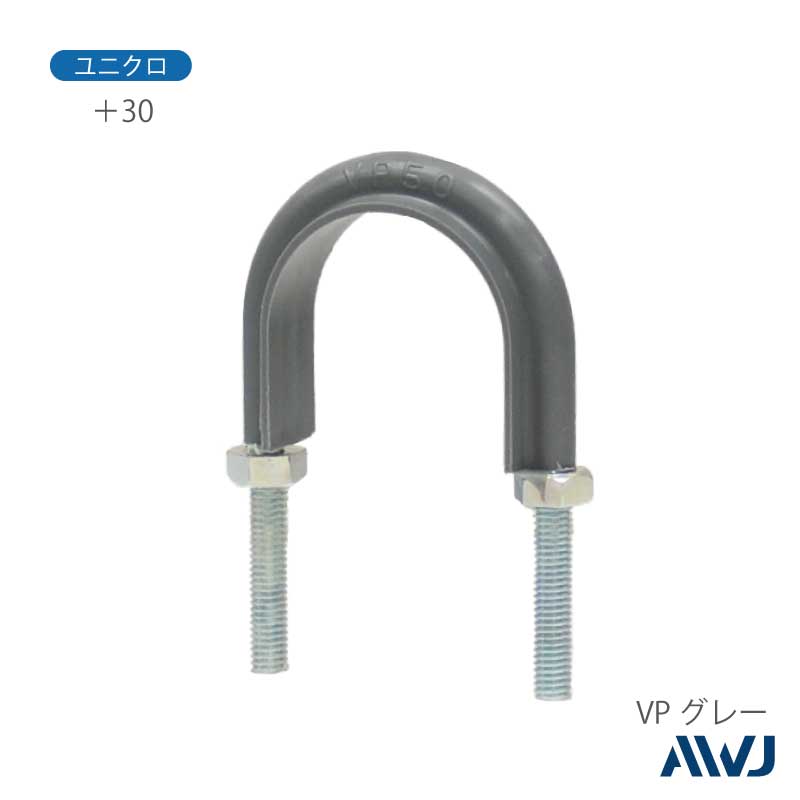

ユニクロメッキ
・硬質ポリ塩化ビニル管専用 VP16〜VP300
・PVC Pipe VP40〜VP150
・非移行性樹脂エラストマー
・塩素含有量０%
・使用可能温度：-60℃〜98℃
・カラー：VPグレー
Uボルト本体 (Metal Part Body)
ユニクロメッキ (Electro-galvanized)
ナット ( Nut)
ユニクロメッキ (Electro-galvanized)
樹脂部分 (Resin Portion)
エラストマー（TPE） (Elastomer)
| Item Number | Size | Item Weight(g) | Color | Quantity in box | MSRP | 2D CAD | 3D CAD | |||
| DXF | x_t | iges | step | |||||||
| VP10349-0163 | VP16 +30 | 22.0 | VP Gray | No Settings | ¥780 | DXF | X_T | IGES | STEP | |
| VP10349-0203 | VP20 +30 | 26.0 | VP Gray | ¥830 | DXF | X_T | IGES | STEP | ||
| VP10349-0253 | VP25 +30 | 32.0 | VP Gray | ¥860 | DXF | X_T | IGES | STEP | ||
| VP10349-0303 | VP30 +30 | 38.0 | VP Gray | ¥890 | DXF | X_T | IGES | STEP | ||
| VP10349-0403 | VP40 +30 | 48.0 | VP Gray | ¥910 | DXF | X_T | IGES | STEP | ||
| VP10349-0503 | VP50 +30 | 60.0 | VP Gray | ¥930 | DXF | X_T | IGES | STEP | ||
| VP10349-0653 | VP65 +30 | 76.0 | VP Gray | ¥990 | DXF | X_T | IGES | STEP | ||
| VP10349-0753 | VP75 +30 | 89.0 | VP Gray | ¥1,050 | DXF | X_T | IGES | STEP | ||
| VP10349-1003 | VP100 +30 | 114.0 | VP Gray | ¥1,140 | DXF | X_T | IGES | STEP | ||
| VP10349-1253 | VP125 +30 | 140.0 | VP Gray | ¥2,530 | DXF | X_T | IGES | STEP | ||
| VP10349-1503 | VP150 +30 | 165.0 | VP Gray | ¥2,870 | DXF | X_T | IGES | STEP | ||
| VP10349-2003 | VP200 +30 | 216.0 | VP Gray | ¥3,440 | DXF | X_T | IGES | STEP | ||
| VP10349-2503 | VP250 +30 | 267.0 | VP Gray | ¥4,770 | DXF | X_T | IGES | STEP | ||
| VP10349-3003 | VP300 +30 | 318.0 | VP Gray | ¥5,660 | DXF | X_T | IGES | STEP | ||
| VP10349-0165 | VP16 +50 | 22.0 | VP Gray | ￥810 | DXF | X_T | IGES | STEP | ||
| VP10349-0205 | VP20 +50 | 26.0 | VP Gray | ¥840 | DXF | X_T | IGES | STEP | ||
| VP10349-0255 | VP25 +50 | 32.0 | VP Gray | ¥880 | DXF | X_T | IGES | STEP | ||
| VP10349-0305 | VP30 +50 | 38.0 | VP Gray | ¥900 | DXF | X_T | IGES | STEP | ||
| VP10349-0405 | VP40 +50 | 48.0 | VP Gray | ¥920 | DXF | X_T | IGES | STEP | ||
| VP10349-0505 | VP50 +50 | 60.0 | VP Gray | ¥940 | DXF | X_T | IGES | STEP | ||
| VP10349-0655 | VP65 +50 | 76.0 | VP Gray | ¥1,010 | DXF | X_T | IGES | STEP | ||
| VP10349-0755 | VP75 +50 | 89.0 | VP Gray | ¥1,060 | DXF | X_T | IGES | STEP | ||
| VP10349-1005 | VP100 +50 | 114.0 | VP Gray | ¥1,150 | DXF | X_T | IGES | STEP | ||
| VP10349-1255 | VP125 +50 | 140.0 | VP Gray | ¥2,640 | DXF | X_T | IGES | STEP | ||
| VP10349-1505 | VP150 +50 | 165.0 | VP Gray | ¥2,980 | DXF | X_T | IGES | STEP | ||
| VP10349-2005 | VP200 +50 | 216.0 | VP Gray | ¥3,550 | DXF | X_T | IGES | STEP | ||
| VP10349-2505 | VP250 +50 | 267.0 | VP Gray | ¥4,980 | DXF | X_T | IGES | STEP | ||
| VP10349-3005 | VP300 +50 | 318.0 | VP Gray | ¥5,790 | DXF | X_T | IGES | STEP | ||
詳しくはPDF図面をご覧ください。
※MSRP＝メーカー希望小売価格

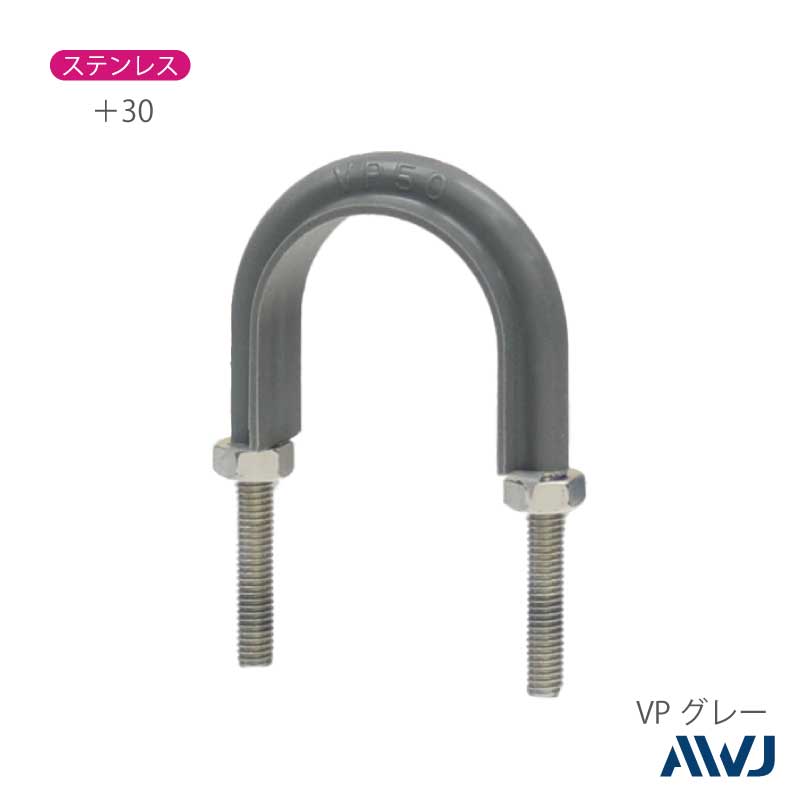

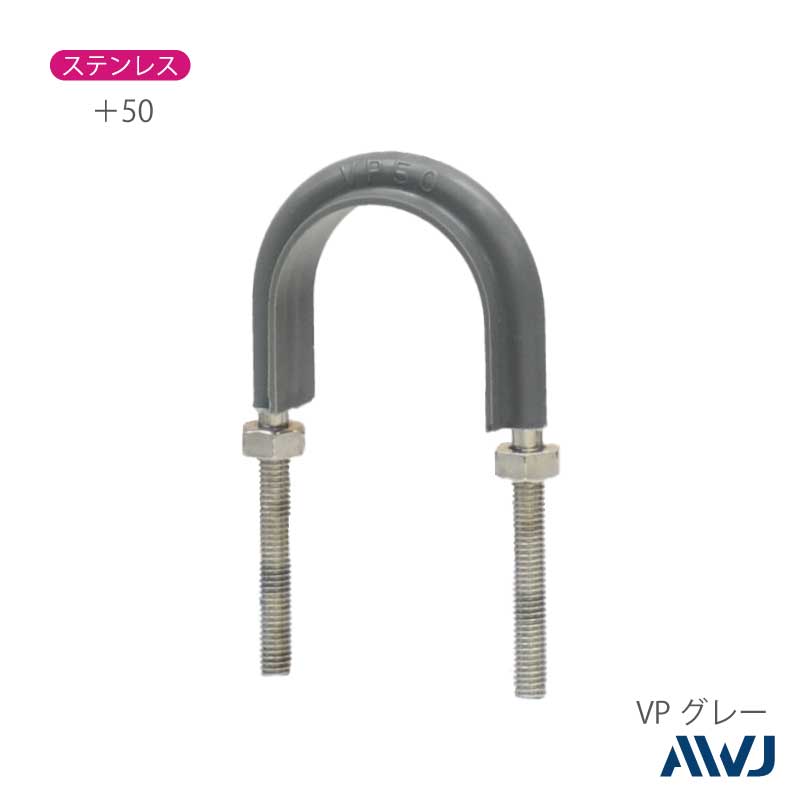

ステンレス
・硬質ポリ塩化ビニル管専用 VP16〜VP300
・PVC Pipe VP40〜VP150
・非移行性樹脂エラストマー
・塩素含有量０%
・使用可能温度：-60℃〜98℃
・カラー：VPグレー
Uボルト本体 (Metal Part Body)
SUS304 (Stainless304)
ナット ( Nut)
SUS304 (Stainless304)
樹脂部分 (Resin Portion)
エラストマー（TPE） (Elastomer)
| Item Number | Size | Item Weight(g) | Color | Quantity in box | MSRP | 2D CAD | 3D CAD | |||
| DXF | x_t | iges | step | |||||||
| VP10350-0163 | VP16 +30 | 22.0 | VP Gray | No Settings | ¥1,680 | DXF | X_T | IGES | STEP | |
| VP10350-0203 | VP20 +30 | 26.0 | VP Gray | ¥1,720 | DXF | X_T | IGES | STEP | ||
| VP10350-0253 | VP25 +30 | 32.0 | VP Gray | ¥1,740 | DXF | X_T | IGES | STEP | ||
| VP10350-0303 | VP30 +30 | 38.0 | VP Gray | ¥1,840 | DXF | X_T | IGES | STEP | ||
| VP10350-0403 | VP40 +30 | 48.0 | VP Gray | ¥1,910 | DXF | X_T | IGES | STEP | ||
| VP10350-0503 | VP50 +30 | 60.0 | VP Gray | ¥1,950 | DXF | X_T | IGES | STEP | ||
| VP10350-0653 | VP65 +30 | 76.0 | VP Gray | ¥2,040 | DXF | X_T | IGES | STEP | ||
| VP10350-0753 | VP75 +30 | 89.0 | VP Gray | ¥2,140 | DXF | X_T | IGES | STEP | ||
| VP10350-1003 | VP100 +30 | 114.0 | VP Gray | ¥2,200 | DXF | X_T | IGES | STEP | ||
| VP10350-1253 | VP125 +30 | 140.0 | VP Gray | ¥4,700 | DXF | X_T | IGES | STEP | ||
| VP10350-1503 | VP150 +30 | 165.0 | VP Gray | ¥5,740 | DXF | X_T | IGES | STEP | ||
| VP10350-2003 | VP200 +30 | 216.0 | VP Gray | ¥6,180 | DXF | X_T | IGES | STEP | ||
| VP10350-2503 | VP250 +30 | 267.0 | VP Gray | ¥14,670 | DXF | X_T | IGES | STEP | ||
| VP10350-3003 | VP300 +30 | 318.0 | VP Gray | ¥21,050 | DXF | X_T | IGES | STEP | ||
| VP10350-0165 | VP16 +50 | 22.0 | VP Gray | ￥1,740 | DXF | X_T | IGES | STEP | ||
| VP10350-0205 | VP20 +50 | 26.0 | VP Gray | ¥1,770 | DXF | X_T | IGES | STEP | ||
| VP10350-0255 | VP25 +50 | 32.0 | VP Gray | ¥1,780 | DXF | X_T | IGES | STEP | ||
| VP10350-0305 | VP30 +50 | 38.0 | VP Gray | ¥1,880 | DXF | X_T | IGES | STEP | ||
| VP10350-0405 | VP40 +50 | 48.0 | VP Gray | ¥1,950 | DXF | X_T | IGES | STEP | ||
| VP10350-0505 | VP50 +50 | 60.0 | VP Gray | ¥1,990 | DXF | X_T | IGES | STEP | ||
| VP10350-0655 | VP65 +50 | 76.0 | VP Gray | ¥2,080 | DXF | X_T | IGES | STEP | ||
| VP10350-0755 | VP75 +50 | 89.0 | VP Gray | ¥2,160 | DXF | X_T | IGES | STEP | ||
| VP10350-1005 | VP100 +50 | 114.0 | VP Gray | ¥2,350 | DXF | X_T | IGES | STEP | ||
| VP10350-1255 | VP125 +50 | 140.0 | VP Gray | ¥4,830 | DXF | X_T | IGES | STEP | ||
| VP10350-1505 | VP150 +50 | 165.0 | VP Gray | ¥5,990 | DXF | X_T | IGES | STEP | ||
| VP10350-2005 | VP200 +50 | 216.0 | VP Gray | ¥6,380 | DXF | X_T | IGES | STEP | ||
| VP10350-2505 | VP250 +50 | 267.0 | VP Gray | ¥15,950 | DXF | X_T | IGES | STEP | ||
| VP10350-3005 | VP300 +50 | 318.0 | VP Gray | ¥21,680 | DXF | X_T | IGES | STEP | ||
詳しくはPDF図面をご覧ください。
※MSRP＝メーカー希望小売価格
溶融亜鉛メッキ [屋外用]
・硬質ポリ塩化ビニル管専用 VP16〜VP300
・PVC Pipe VP40〜VP150
・非移行性樹脂エラストマー
・塩素含有量０%
・使用可能温度：-60℃〜98℃
・カラー：VPグレー
Uボルト本体 (Metal Part Body)
溶融亜鉛メッキ (Hot-dip galvanized )
ナット ( Nut)
溶融亜鉛メッキ (Hot-dip galvanized )
樹脂部分 (Resin Portion)
エラストマー（TPE） (Elastomer)
| Item Number | Size | Item Weight(g) | Color | Quantity in box | MSRP | 2D CAD | 3D CAD | |||
| DXF | x_t | iges | step | |||||||
| VP10359-0163 | VP16 +30 | 22.0 | Black | No Settings | ¥1,720 | DXF | X_T | IGES | STEP | |
| VP10359-0203 | VP20 +30 | 26.0 | Black | ¥1,780 | DXF | X_T | IGES | STEP | ||
| VP10359-0253 | VP25 +30 | 32.0 | Black | ¥1,840 | DXF | X_T | IGES | STEP | ||
| VP10359-0303 | VP30 +30 | 38.0 | Black | ¥1,920 | DXF | X_T | IGES | STEP | ||
| VP10359-0403 | VP40 +30 | 48.0 | Black | ¥1,980 | DXF | X_T | IGES | STEP | ||
| VP10359-0503 | VP50 +30 | 60.0 | Black | ¥2,040 | DXF | X_T | IGES | STEP | ||
| VP10359-0653 | VP65 +30 | 76.0 | Black | ¥2,100 | DXF | X_T | IGES | STEP | ||
| VP10359-0753 | VP75 +30 | 89.0 | Black | ¥2,240 | DXF | X_T | IGES | STEP | ||
| VP10359-1003 | VP100 +30 | 114.0 | Black | ¥2,370 | DXF | X_T | IGES | STEP | ||
| VP10359-1253 | VP125 +30 | 140.0 | Black | ¥4,930 | DXF | X_T | IGES | STEP | ||
| VP10359-1503 | VP150 +30 | 165.0 | Black | ¥5,860 | DXF | X_T | IGES | STEP | ||
| VP10359-2003 | VP200 +30 | 216.0 | Black | ¥6,320 | DXF | X_T | IGES | STEP | ||
| VP10359-2503 | VP250 +30 | 267.0 | Black | ¥15,050 | DXF | X_T | IGES | STEP | ||
| VP10359-3003 | VP300 +30 | 318.0 | Black | ¥22,320 | DXF | X_T | IGES | STEP | ||
| VP10359-0165 | VP16 +50 | 22.0 | Black | ￥1,780 | DXF | X_T | IGES | STEP | ||
| VP10359-0205 | VP20 +50 | 26.0 | Black | ¥1,840 | DXF | X_T | IGES | STEP | ||
| VP10359-0255 | VP25 +50 | 32.0 | Black | ¥1,900 | DXF | X_T | IGES | STEP | ||
| VP10359-0305 | VP30 +50 | 38.0 | Black | ¥1,990 | DXF | X_T | IGES | STEP | ||
| VP10359-0405 | VP40 +50 | 48.0 | Black | ¥2,040 | DXF | X_T | IGES | STEP | ||
| VP10359-0505 | VP50 +50 | 60.0 | Black | ¥2,100 | DXF | X_T | IGES | STEP | ||
| VP10359-0655 | VP65 +50 | 76.0 | Black | ¥2,170 | DXF | X_T | IGES | STEP | ||
| VP10359-0755 | VP75 +50 | 89.0 | Black | ¥2,300 | DXF | X_T | IGES | STEP | ||
| VP10359-1005 | VP100 +50 | 114.0 | Black | ¥2,440 | DXF | X_T | IGES | STEP | ||
| VP10359-1255 | VP125 +50 | 140.0 | Black | ¥4,960 | DXF | X_T | IGES | STEP | ||
| VP10359-1505 | VP150 +50 | 165.0 | Black | ¥6,120 | DXF | X_T | IGES | STEP | ||
| VP10359-2005 | VP200 +50 | 216.0 | Black | ¥6,500 | DXF | X_T | IGES | STEP | ||
| VP10359-2505 | VP250 +50 | 267.0 | Black | ¥16,320 | DXF | X_T | IGES | STEP | ||
| VP10359-3005 | VP300 +50 | 318.0 | Black | ¥22,950 | DXF | X_T | IGES | STEP | ||
詳しくはPDF図面をご覧ください。
※MSRP＝メーカー希望小売価格
ステンレス[屋外用]
・硬質ポリ塩化ビニル管専用 VP16〜VP300
・PVC Pipe VP40〜VP150
・非移行性樹脂エラストマー
・塩素含有量０%
・使用可能温度：-60℃〜98℃
・カラー：VPグレー
Uボルト本体 (Metal Part Body)
SUS304 (Stainless304)
ナット ( Nut)
SUS304 (Stainless304)
樹脂部分 (Resin Portion)
エラストマー（TPE） (Elastomer)
| Item Number | Size | Item Weight(g) | Color | Quantity in box | MSRP | 2D CAD | 3D CAD | |||
| DXF | x_t | iges | step | |||||||
| VP10354-0163 | VP16 +30 | 22.0 | Black | No Settings | ¥1,720 | DXF | X_T | IGES | STEP | |
| VP10354-0203 | VP20 +30 | 26.0 | Black | ¥1,780 | DXF | X_T | IGES | STEP | ||
| VP10354-0253 | VP25 +30 | 32.0 | Black | ¥1,840 | DXF | X_T | IGES | STEP | ||
| VP10354-0303 | VP30 +30 | 38.0 | Black | ¥1,920 | DXF | X_T | IGES | STEP | ||
| VP10354-0403 | VP40 +30 | 48.0 | Black | ¥1,980 | DXF | X_T | IGES | STEP | ||
| VP10354-0503 | VP50 +30 | 60.0 | Black | ¥2,040 | DXF | X_T | IGES | STEP | ||
| VP10354-0653 | VP65 +30 | 76.0 | Black | ¥2,100 | DXF | X_T | IGES | STEP | ||
| VP10354-0753 | VP75 +30 | 89.0 | Black | ¥2,240 | DXF | X_T | IGES | STEP | ||
| VP10354-1003 | VP100 +30 | 114.0 | Black | ¥2,370 | DXF | X_T | IGES | STEP | ||
| VP10354-1253 | VP125 +30 | 140.0 | Black | ¥4,930 | DXF | X_T | IGES | STEP | ||
| VP10354-1503 | VP150 +30 | 165.0 | Black | ¥5,860 | DXF | X_T | IGES | STEP | ||
| VP10354-2003 | VP200 +30 | 216.0 | Black | ¥6,320 | DXF | X_T | IGES | STEP | ||
| VP10354-2503 | VP250 +30 | 267.0 | Black | ¥15,050 | DXF | X_T | IGES | STEP | ||
| VP10354-3003 | VP300 +30 | 318.0 | Black | ¥22,320 | DXF | X_T | IGES | STEP | ||
| VP10354-0165 | VP16 +50 | 22.0 | Black | ￥1,780 | DXF | X_T | IGES | STEP | ||
| VP10354-0205 | VP20 +50 | 26.0 | Black | ¥1,840 | DXF | X_T | IGES | STEP | ||
| VP10354-0255 | VP25 +50 | 32.0 | Black | ¥1,900 | DXF | X_T | IGES | STEP | ||
| VP10354-0305 | VP30 +50 | 38.0 | Black | ¥1,990 | DXF | X_T | IGES | STEP | ||
| VP10354-0405 | VP40 +50 | 48.0 | Black | ¥2,040 | DXF | X_T | IGES | STEP | ||
| VP10354-0505 | VP50 +50 | 60.0 | Black | ¥2,100 | DXF | X_T | IGES | STEP | ||
| VP10354-0655 | VP65 +50 | 76.0 | Black | ¥2,170 | DXF | X_T | IGES | STEP | ||
| VP10354-0755 | VP75 +50 | 89.0 | Black | ¥2,300 | DXF | X_T | IGES | STEP | ||
| VP10354-1005 | VP100 +50 | 114.0 | Black | ¥2,440 | DXF | X_T | IGES | STEP | ||
| VP10354-1255 | VP125 +50 | 140.0 | Black | ¥4,960 | DXF | X_T | IGES | STEP | ||
| VP10354-1505 | VP150 +50 | 165.0 | Black | ¥6,120 | DXF | X_T | IGES | STEP | ||
| VP10354-2005 | VP200 +50 | 216.0 | Black | ¥6,500 | DXF | X_T | IGES | STEP | ||
| VP10354-2505 | VP250 +50 | 267.0 | Black | ¥16,320 | DXF | X_T | IGES | STEP | ||
| VP10354-3005 | VP300 +50 | 318.0 | Black | ¥22,950 | DXF | X_T | IGES | STEP | ||
